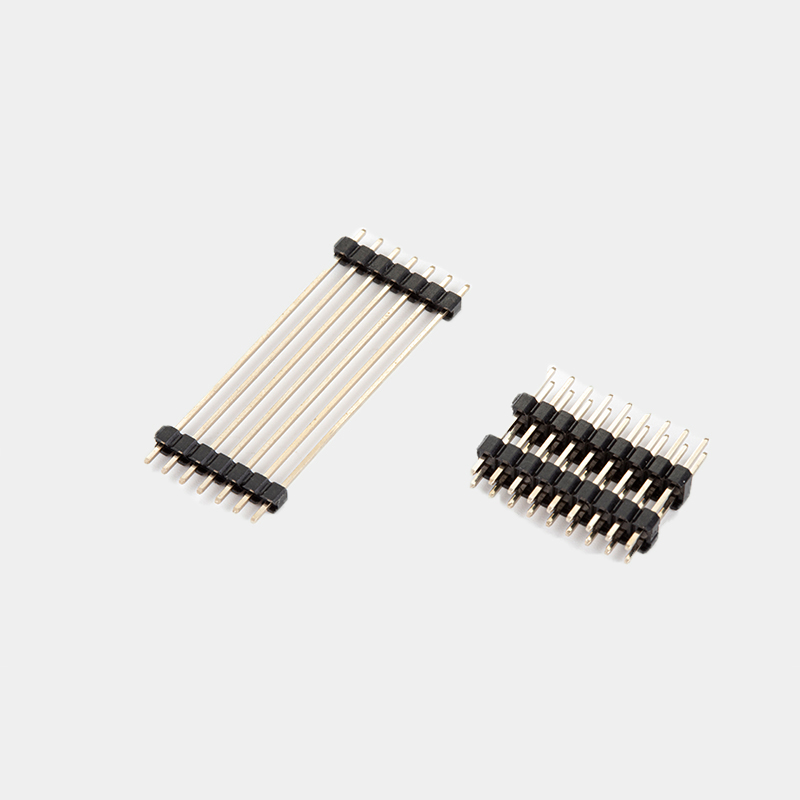

PH2.54 Pin Header Stack DIP TYPE

Product Parameter

Product Name: 2.54 spacing single and double row stack DIP pin header

Pin: 1 * 1-1 * 40p, 2 * 2-2 - * 40p

Rated current 5A

Rated voltage 250V

Contact resistance ≤ 20m Ω

Insulation resistance ≥ 1000m Ω

Working temperature: - 25? - + 105

The welding temperature is + 260 ° for 10s

Packaging: bag, box, tube, tape (roll)

Application fields: industrial control system, SPC exchange, computer, display (screen), instrumentation, security, automotive new energy, lighting, digital appliances, set top box, communication equipment and other fields

Product parameters:

Needle length: customized, up to 70mm

Plastic materials: PBT, PA6T, PA9T, LCP

Contact terminal material: H62 / H65 brass, phosphor bronze, alloy, copper clad steel

Single plastic height: 1.0 mm, 1.5 mm, 1.7 mm, 2.0 mm, 2.5 mm

Plastic: orange, black, gray, yellow, white, gray, blue

Electrodeposition: gold, tin, nickel and silver plating
