Efficacy and structure

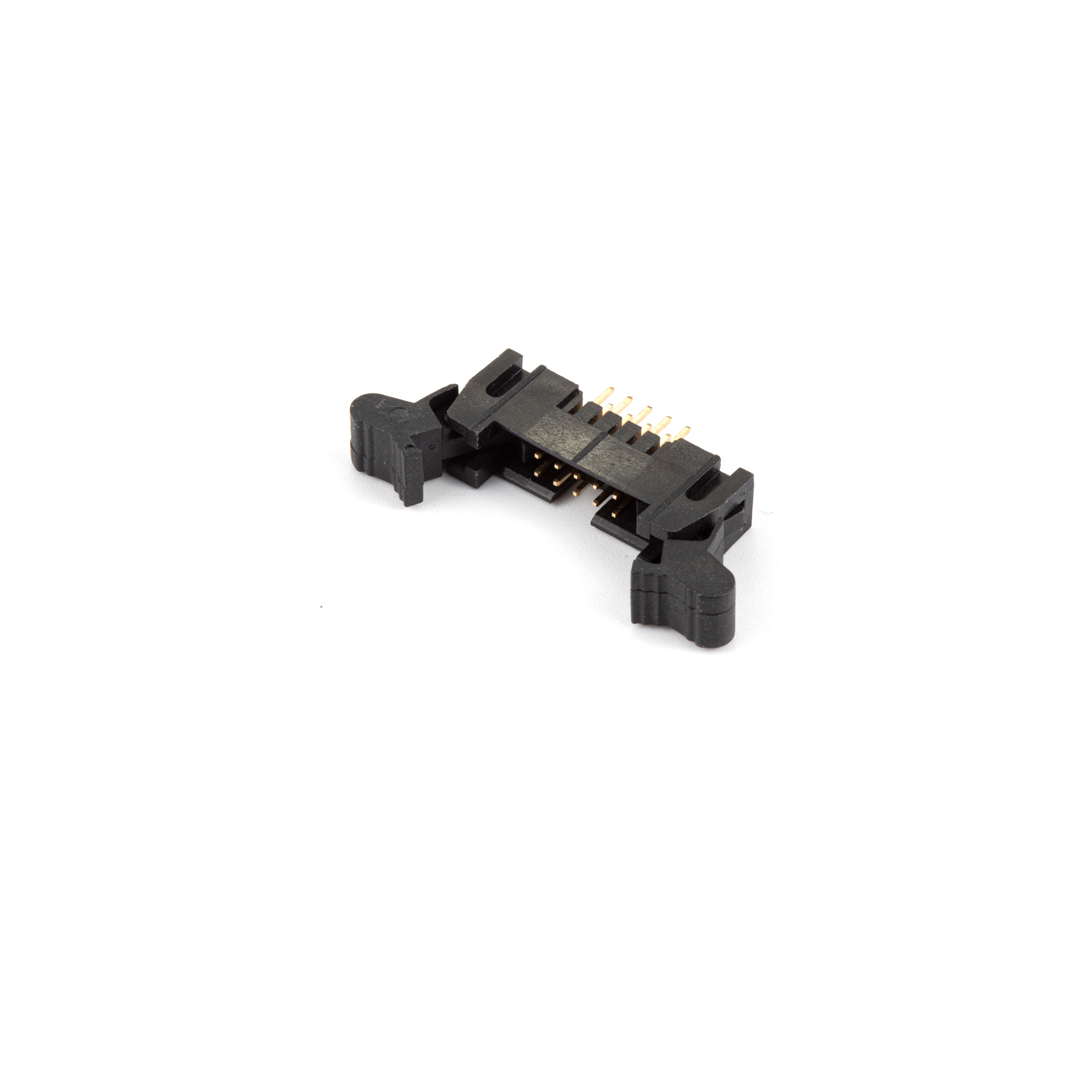

Jianniu is generally composed of a square plastic power socket and a plurality of orderly arranged square pins. The difference between the simple ox horn connector and the ox horn connector depends on the simple ox horn removing the lock catch on both sides.

According to the requirements, the outfield specifications of jianniu connector are 1.27 spacing, 2.0 spacing and 2.54 spacing; according to the different spacing, the diameter of the square pin is relatively changed. The bottom end and PCB surface can be designed as SMT (such as the legend) or dip inserted 180 degrees.

Horn function: after welding the PCB board, connect the IDC line row of relative specifications, and then form the power circuit interface mode required by the designer with other power circuits. It is generally used to transmit control data signal and weak current flow.
