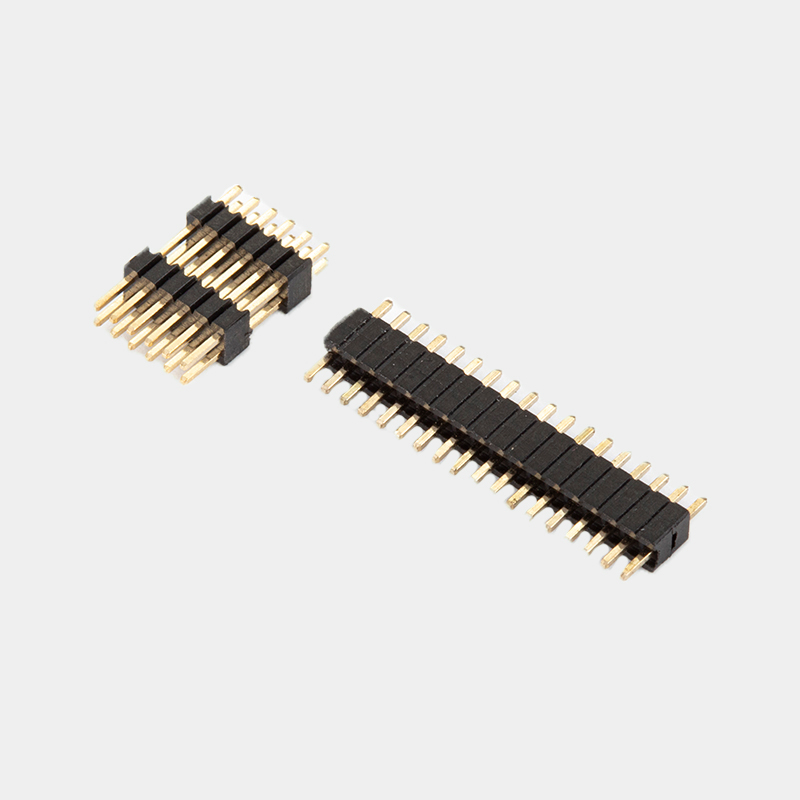

PH1.27 Pin Header Stack DIP TYPE

Product Name: 1.27 spacing single double row stack  DIP pin header

Pin: 1 * 1-1 * 50p, 2 * 2-2 - * 50p

Rated current 2A

Rated voltage 250V

Contact resistance ≤ 20m Ω

Insulation resistance ≥ 1000m Ω

Working temperature: - 25? - + 105

The welding temperature is + 260 ° for 10s

Packaging: bag, box, tube, tape (roll)

Application: PCB board to board docking

Product parameters:

Needle length: customized, up to 20mm

Plastic materials: PA6T, PA9T, LCP

Contact terminal material: H62 / H65 brass, phosphor bronze

Single plastic height: 1.0 mm, 1.5 mm, 1.7 mm, 2.0 mm, 2.54 mm

Plastic color: black, white, yellow, red, blue, orange, grey, grey

Electrodeposition: gold, tin, nickel and silver plating
