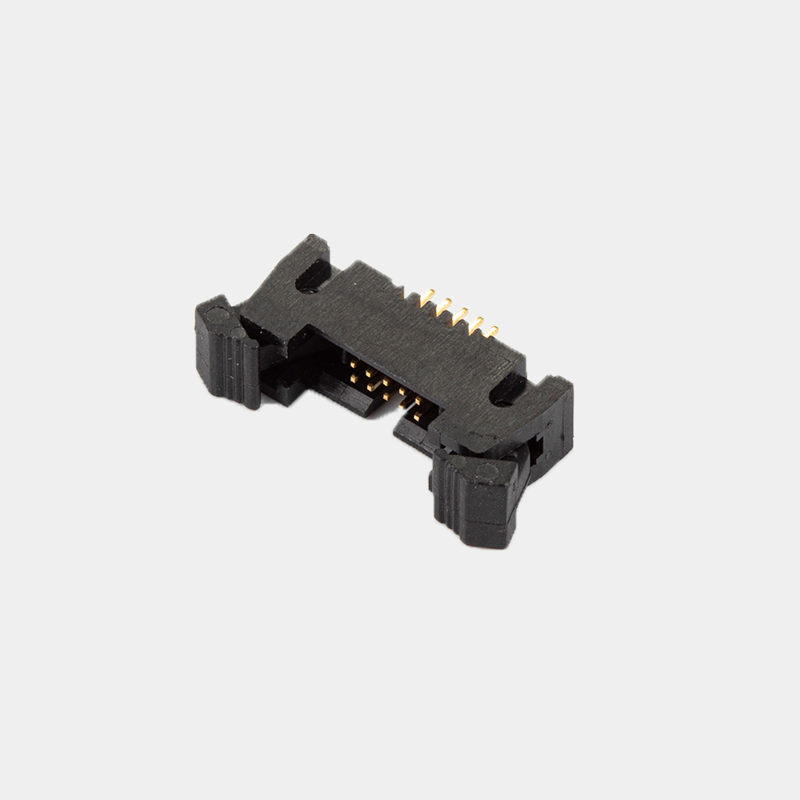

PH1.27 Shrouded Header DIP TYPE

Product Parameters

Product Name: 1.27 spacing shrouded header DIP

Pin: 6p-64p

Color: the common color is black. There are gray points;

Material: Sony standard PBT environmental protection material (94V-0)

Terminal material: bronze and phosphor bronze;

Gold plating and nickel plating!!

Base: PBT 30% (94V-0)

Terminal: Bronze t = 0.30 (base nickel 50U ", contact area gold plating 1 ~ 30U")

Electrical performance

Rated current: 3.0Amp

Withstand voltage: AC 500V / 1minute

Insulation resistance: 1000m Ω min, at DC 500V

Contact resistance: 20m Ω Max

Working temperature: - 40 ° C ~ + 105 ° C

Application fields: industrial control system, SPC exchange, computer, display (screen), instrumentation, security, automotive new energy, lighting, digital appliances, set top box, communication equipment and other fields
