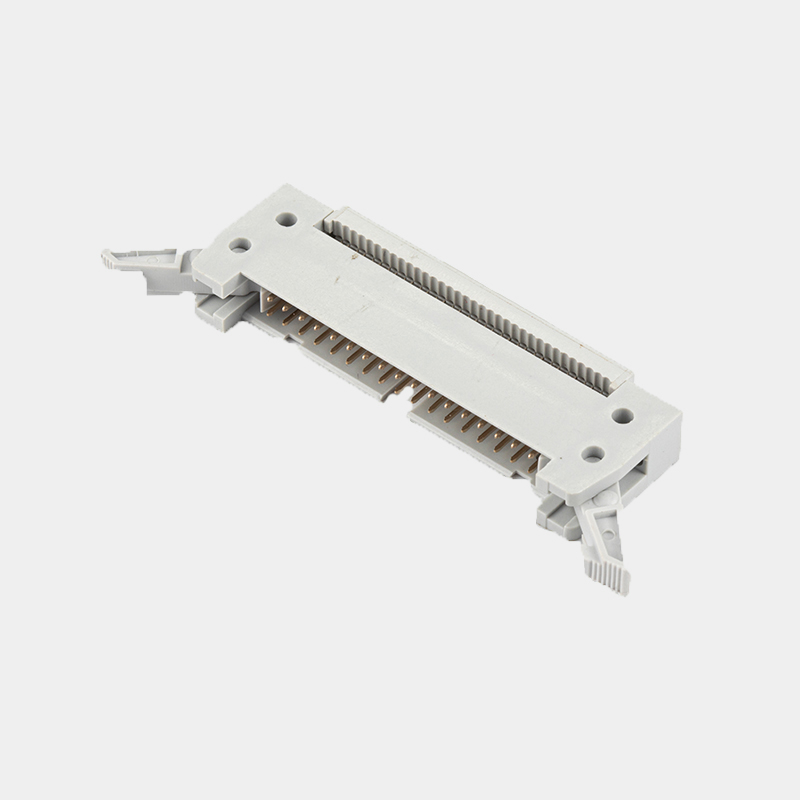

Shrouded header IDC type

Product parameters:

Name: Shrouded header IDC type

Pin: 6p-64p

Structure: main body, middle cover, ear buckle. There are fixed seat and without fixed seat, with fixed seat with ears (bf-p Series), without fixed seat without ears (bf-n Series). Ear clasp can be divided into high foot and low foot. The high foot is equipped with 2.54mm IDC three piece self-locking card hook (self-locking function). Two sets of self-locking card (IDC).

Application: used for 2651 26awg 28Awg 1.27mm pitch gray wire and rainbow flat wire

Color: the common color is black. There are gray points;

Material: Sony standard PBT environmental protection material (94V-0)

Terminal material: bronze and phosphor bronze;

Electrodeposition: half gold nickel plating and all gold and nickel plating!!

Base: PBT 30% (94V-0)

Terminal: Bronze t = 0.30 (base nickel 50U ", contact area gold plating 1 ~ 30U")

Electrical performance

Rated current: 1.0AMP

Withstand voltage: AC 500V / 1minute

Insulation resistance: 1000m Ω min, at DC 500V

Contact resistance: 20m Ω Max

Working temperature: - 40 ° C ~ + 105 ° C

Application fields: industrial control system, SPC exchange, computer, display (screen), instrumentation, security, automotive new energy, lighting, digital appliances, set top box, communication equipment and other fields
