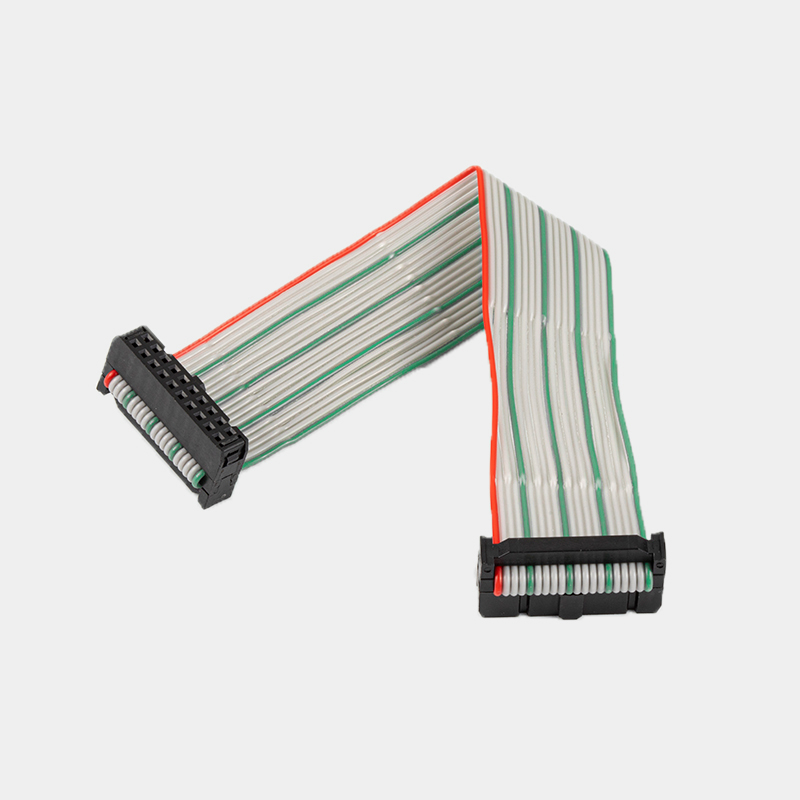

IDC combined cable arrangement

Product parameters:

Name: 2.54idc finished ash line

Structure: 2.54idc three piece, gray cable

Spacing between wires: ph1.27mm

Wiring specification: UL2651 28Awg

Copper wire structure and material: first plated and then twisted (in addition: first twisted and then plated copper clad steel Al Mg wire 7-12 strands of copper wire)

Copper core conductor: 7 / 0.12mm [conventional 7 / 0.08mm 7 / 0.09mm 7 / 0.1mm 7 / 0.16mm 7 / 0.2mm (7 is 7 strands of copper wire)]

Exterior color: conventional gray with red side printing, black and yellow, need to be customized!

Conductor diameter: 0.12 ± 0.005mm

Elongation of Conductor: 18 ℅

Cross sectional area of Conductor: 0.36mm2

Conductor stranding distance: 10.7mm ↓

Thickness of insulator: minimum 0.10 mm, average 0.23 mm

Wire diameter and thickness: 0.9 ± 0.05mm

Insulator elongation: 100.00 ℅

Tensile strength of insulator: 1.066kg/m ‰

Spark test: 3.0kv/0.15spc ↑

Withstand voltage: 2KV 10mA

Conductor resistance: ≤ 237 Ω / RM ↓

Insulation resistance: ≥ 100m Ω / RM ↑

Capacitance: 40pf / M

Impedance: 100 Ω

Working temperature: - 40 ° C ~ + 105 ° C

Insulation cover: Green PVC 45p (RoHS) 8058 gray
