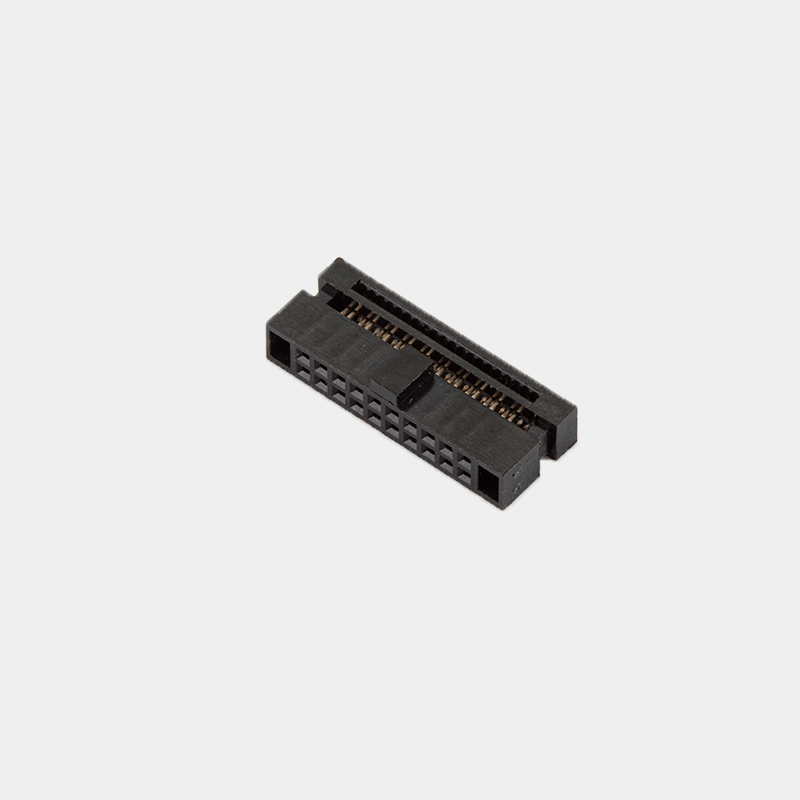

1.27 IDC Socket

Product parameters:

Name: 1.27 IDC Socket

Pin: 6p-100p

Structure: main body, middle cover, anti folding, anti sticking and no anti sticking (bumps, anti inserting anti bumps)

Application: used for 2678 30awg 0.635mm spacing gray flat wire

Color: the common color is black. There are gray points;

Material: Sony standard PBT environmental protection material (94V-0)

Terminal material: bronze and phosphor bronze;

Electrodeposition: half gold nickel plating and all gold and nickel plating!!

Base: PBT 30% (94V-0)

Terminal: Bronze t = 0.30 (base nickel 50U ", contact area gold plating 1 ~ 30U")

Electrical performance

Rated current: 1.0AMP

Withstand voltage: AC 500V / 1minute

Insulation resistance: 1000m Ω min, at DC 500V

Contact resistance: 20m Ω Max

Working temperature: - 40 ° C ~ + 105 ° C

Application fields: industrial control system, SPC exchange, computer, display (screen), instrumentation, security, automotive new energy, lighting, digital appliances, set top box, communication equipment and other fields
